تردد الراديو الروتاري المشتركة
>
|
|
| مكان المنشأ | الصين |
| اسم العلامة التجارية | CENO |
| إصدار الشهادات | ISO9001,CE,RoHS,UL |
| رقم الموديل | RCN0167C |
Radio Frequency Rotary Joint with Frequency Range DC-67GHz for Radar antenna
RCN0167C is CENO single channel RF rotary joint with frequency range DC to 67GHz. RF slip rings are a critical connection component in modern precision rotating equipment. They ensure stable, low-loss transmission of high-frequency signals even in dynamic rotational environments and are one of the core technologies that enable equipment's "infinite continuous rotation" capability. For more information please contact us
Specification
| RCN0167C Specification | |
| Channels | 1 |
| Connector type | 1.85-K (50Ω) |
| Frequency range | DC-67GHz |
| Average power |
10W@DC-10GHz; 5W@10-26GHz 3W@26-50GHz; 1W@50-67GHz |
| Standing wave ratio (max) |
1.7@DC~26.5GH |
| Standing wave ratio wave (max) |
0.2@DC~26.5GHz 0.4@50~67GHz |
| Insert loss (max) |
1dB@DC~26.5GHz 1.5dB@26.5~50GHz 2.5dB@50~67GHzGHz |
| Insert loss wave (max) |
0.15dB@26.5~50GHz 0.35dB@50~67GHzGHz |
Features
Applications
Optional

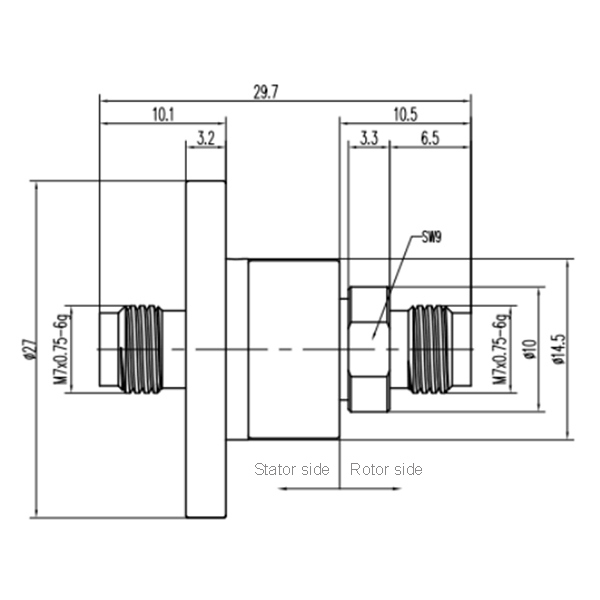

Outline drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
