| مكان المنشأ | الصين |
| اسم العلامة التجارية | CENO |
| إصدار الشهادات | CE,RoHS,UL,ISO9001 |
| رقم الموديل | BCN12-08P1 |

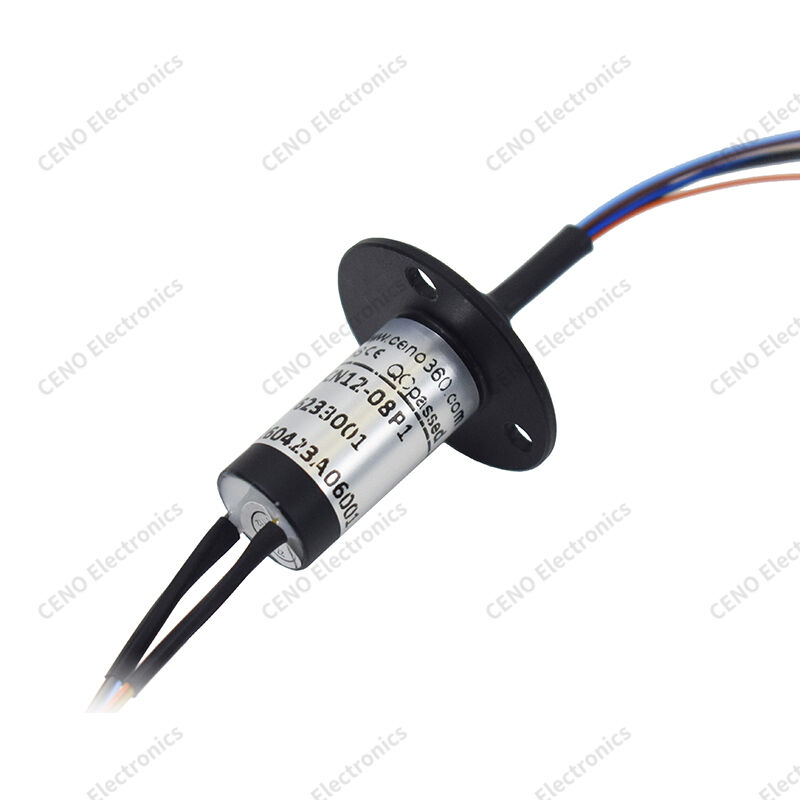

Capsule Slip Ring with 8-channel rotary connector
BCN12-08P1 is CENO miniature flange capsule slip ring (12mm OD, 8 channels) is a compact rotary connector with precious metal brush contacts, enabling infinite 360° rotation to deliver steady low-current and control signals without cable tangling. Its 3-hole flange allows fast fixed installation, with dual-side color-coded leads distinguishing static and rotating ends. CE & RoHS certified, it boasts mini size, low electrical noise and reliable signal transmission, ideal for compact small rotary devices needing continuous power and data transfer.
Features
Applications
Optional
Specification
|
BCN12-08P1 |
Specification |
|
Protection(IP Grade) |
IP54 |
|
Working Humidity |
<60%RH |
|
Working Temperature |
-20"C~+60°C |
|
Lead Wire Size |
AWG28# Wire Teflon |
|
Rating Voltage |
0~240VAC/VDC |
|
Circuits & Current |
8 Circuits *2A |
|
Dielectric Strength |
>500VAC@50Hz |
|
Insulation Resistance |
100MΩ@500VDC |
|
Electrical Noise |
Max 35mΩ |
|
Lead Wire Length |
Rotor: 100±5mm; Stator:100±5mm |
|
Working Speed |
0~250rpm |
|
Contact Material |
Precious Metal |
|
Housing Material |
Engineering Plastic |
Outline drawing
Our Service
1. Reply inquiry in 24 hours.
2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3. Answer your question detailed.
4. Solved the problem with you during using our products.
5. Samples will be offered to you for our future cooperation.
FAQ
1. What do we do?
We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.
2. How long have we been in the business?
CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.
3. What is a slip ring?
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.
4. How do I choose a slip ring?
Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.
5. Do you offer custom slip rings?
Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
