| مكان المنشأ | الصين |
| اسم العلامة التجارية | CENO |
| إصدار الشهادات | CE,RoHS,ISO9001,UL |
| رقم الموديل | ECN000-24P1 |

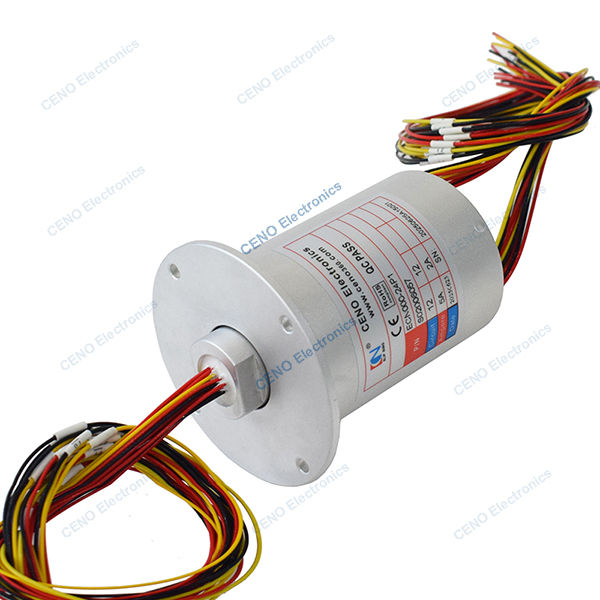

24 circuits Electric Power and Signal Slip Ring for Industrial System
ECN000-24P1 is CENO industrial slip ring combine with 24 circuits electric power and signals. CENO industry commonly used in high-end industrial electrical equipment or precision electronic equipment with multiple functions, high performance, high precision, and multiple continuous rotational movements. CENO industrial slip ring provide reliably transmission solution of power and signal for electrical equipment which perform complex rotational movement. For more information please contact us
Specification
| ECN000-24P1 | Specification |
| Current & Circuits | 12 circuits * 5A; 12 circuits * 2A |
| Rating Voltage | 0 ~ 220 VAC/VDC |
| Dielectric strength | ≥500VAC@50Hz |
| Isolation resistance | ≥500MΩ@500VDC |
| Contact resistance wave | ≤ 30mΩ |
| Working temperature | -20°C~+60°C |
| Working humidity | 60 %RH |
| IP protection grade | IP51 |
| Operating speed | 0~300rpm |
| Outer diameter | Ø56mm |
| Contact material | Precious Metal |
| Housing material | Aluminium Alloy |
| Lead wire size | As customized |
| Lead wire length | As customized |
Features
Applications
Optional
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
