| مكان المنشأ | الصين |
| اسم العلامة التجارية | CENO |
| إصدار الشهادات | CE,RoHS,ISO9001,UL |
| رقم الموديل | ECN038-02P4-02EM-IP51 |

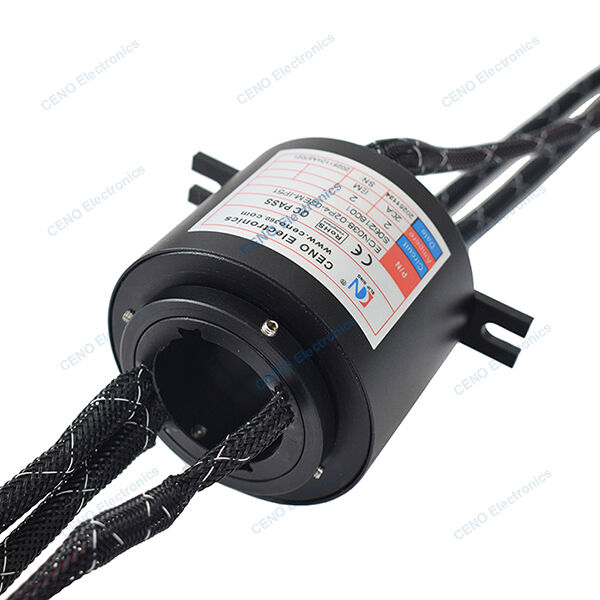

Low Temperature Slip Ring with Electric Power and Ethernet Signal for Industry
ECN038-02P4-02EM-IP51 is CENO low temperature slip ring with protection grade IP51 and through hole 38mm. Low-temperature slip rings are a special customized version of electrical slip rings.Their core function is to maintain stable electrical power/signal transmission under extreme low-temperature conditions, while also possessing characteristics such as resistance to low-temperature embrittlement, resistance to condensation, and low contact resistance fluctuation. Please contact us get more information.
Features
Applications
Optional
Specification
| ECN038-02P4-02EM-IP51 Specification | |
| Current & Circuits | 2 circuits * 20A; 2 group * 100M Ethernet |
| Rating Voltage | 0 ~ 240 VAC/VDC |
| Dielectric strength | ≥1000VAC@50Hz; ≥300VAC@50Hz |
| Isolation resistance | ≥500MΩ@500VDC; ≥100MΩ@300VDC |
| Contact resistance wave | ≤ 30mΩ |
| Working temperature | -60°C~+70°C |
| Working humidity | 95±4 %RH |
| IP protection grade | IP51 |
| Operating speed | 0~300rpm |
| Inner diameter | Ø38mm |
| Outer diameter | Ø80mm |
| Contact material | Precious Metal |
| Housing material | Aluminium Alloy |
| Lead wire size & length | As customized |
Outline drawing
|
Application
|
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
