| مكان المنشأ | الصين |
| اسم العلامة التجارية | CENO |
| إصدار الشهادات | CE,RoHS,ISO9001,UL |
| رقم الموديل | ECN000-03120-12P-04S-02EG |

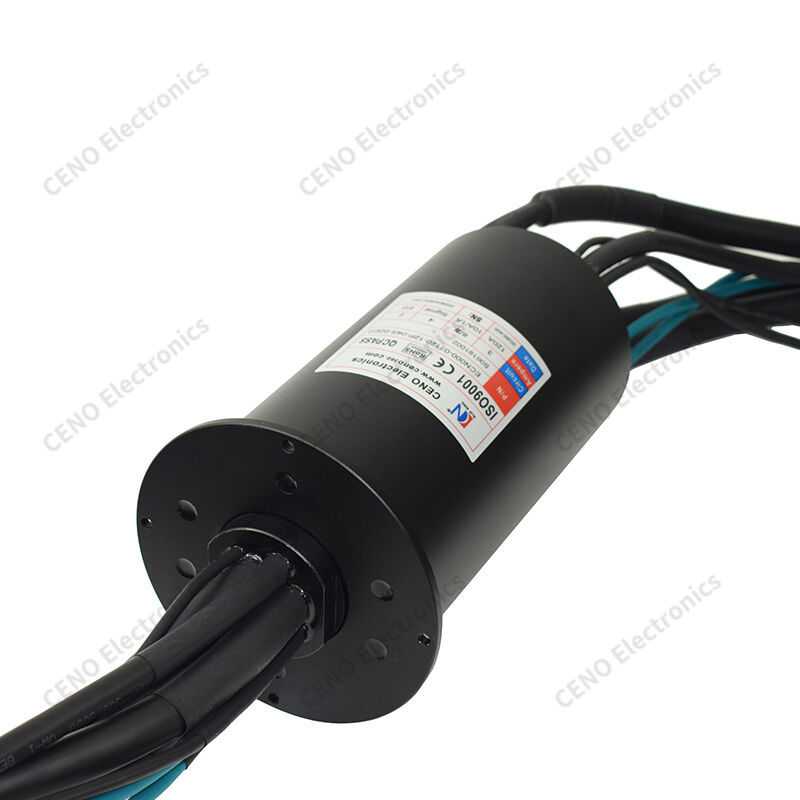

Hybrid Slip Ring with 2 Ethernet channels
ECN000-03120-12P-04S-02EG is CENO Hybrid Slip Ring integrates 3×120A heavy power circuits, 8×10A auxiliary power, 4×1A signal lines and 2 Ethernet channels to transmit power, control signals and high-speed data during 360° unlimited rotation. Separated power and signal cables effectively reduce electromagnetic interference. Built with anodized aluminum housing and precious metal contacts, it meets CE & RoHS standards for stable long-term heavy-duty rotary industrial operation.
Features
Applications
Optional
Specification
|
ECN000-03120-12P-04S-02EG |
Specification |
|
Protection(IP Grade) |
IP51 |
|
Working Humidity |
60%RH |
|
Working Temperature |
-20℃~+60℃ |
|
Rating Voltage |
0~72VAC/VDC |
|
Circuits & Current |
3 Circuits * 120A(72V);8 Circuits *10A(48V); 4 Circuits *1A(48V);1 Group * CAN bus; 2 Groups * Gigabit Ethernet |
|
Dielectric Strength |
≥500vAC@50Hz(Power); ≥300VAC@50Hz(Signal) |
|
Insulation Resistance |
500MΩ@500VDC(Power); 100MΩ@300VDC(Signal) |
|
Electrical Noise |
Max 20mΩ(50rpm) |
|
Lead Wire Length |
Rotor: 1500mm; Stator:1500mm |
|
Working Speed |
0~30rpm |
|
Rotation Way |
Flange installation |
|
Contact Material |
Precious Metal/Gold to gold |
|
Housing Material |
Aluminum Alloy |
Outline drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
